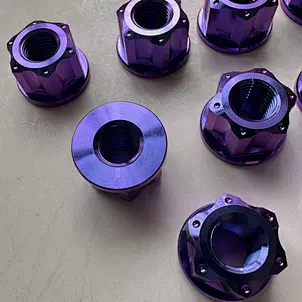

Titanium Nut
size： M5 M6 M8 M10 M12 M14 M16
Color：Titanium, Gold, Rainbow, Burning Blue, Black , green , purple , blue
Features：Light weight, High strength, Good corrosion resistance, High heat intensity,Good low temperature performance，Hot Forging
1.Dimensions/Types: Common standards include GB/T 6170 (Type 1 hex Titanium nuts), GB/T 6175 (Type 2 hex Titanium nuts), and GB/T 6178/6179 (slotted/nylon-insert lock Titanium nuts).
2.Material Specifications: Raw materials must comply with GB/T 42159-2022 ("Titanium and titanium alloy bars and wires for fasteners") or GB/T 3620.1 ("Designation and chemical composition of titanium and titanium alloys").
3.Aerospace-Specific: Aerospace applications adhere to industry standards such as HB 8124-2002 ("Titanium alloy lock nuts") and HB 8027-2002 ("TC16 titanium alloy thin self-locking hex Titanium nuts").
4.Materials:
TA1/TA2 (Gr1/Gr2): Pure titanium, with excellent corrosion resistance and low strength, is suitable for corrosion-resistant applications such as chemical engineering and electroplating.
TC4 (Gr5, Ti6Al4V): Titanium alloy, with high strength (tensile strength ≥895MPa), suitable for aerospace and heavy-duty automotive applications.
5.Specification range: Regular coverage from M3 to M30, with special customization available for larger specifications; threads are mostly metric coarse/fine threads, and UNF/UNC American standard threads can also be customized.
